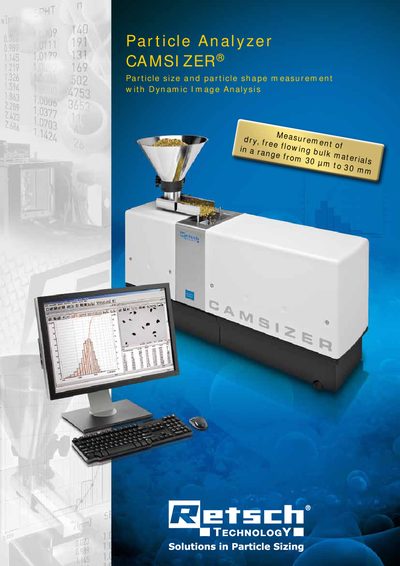

The CAMSIZER provides fast, accurate particle size and shape measurement for dry bulk materials from 30 µm to 30 mm.
The CAMSIZER uses a patented dual‑camera Dynamic Image Analysis system to capture each particle in real time. Measurements are fully automated, requiring only sample loading, and results are displayed instantly with optional export to LIMS or other software.
Retsch offers a range of accessories—including feed chutes, hoppers, and motorized feed guides—to adapt the instrument to different materials and production environments. The system can be integrated online for continuous process monitoring and is compatible with national and international standards.
| Measuring range | 30 µm to 30 mm |
|---|---|
| Feed hopper capacity | 3.5 L (available in 0.5, 2.8, 3.5, 7.8 L) |
| Image capture rate | 60 images per second |
| Camera pixel count | more than 780,000 pixels per image |
| LED strobe frequency | 90 Hz |
| LED light‑source service life | more than 20 years |
| Calibration precision | ±0.1 µm |
It measures particles from 30 µm up to 30 mm without hardware adjustment.
The system captures 60 images per second, processing over 45 million measuring points per second.
Yes, Retsch supplies an online version that can be integrated into a production line for real‑time quality control.
The standard feed hopper holds 3.5 L of material, with other sizes also available.
