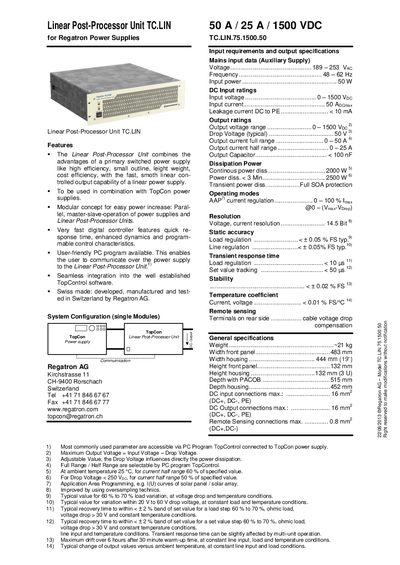

The Regatron TC.LIN.75.1500.50 Linear Post-Processor Unit datasheet provides specifications, input/output ratings, dimensions, and safety information.
The Linear Post‑Processor Unit TC.LIN.75.1500.50 combines the efficiency of a switched‑mode power supply with the smooth, linear‑controlled output of a linear supply. It is intended for use with TopCon power supplies and offers modular parallel operation, fast digital control, and a PC‑based programming interface that integrates with TopControl software.
The datasheet lists detailed electrical ratings (0‑1500 VDC input, up to 50 A output, 2000 W continuous power), mechanical dimensions (483 mm front width, 132 mm height, 515 mm depth), environmental limits (5‑40 °C operating temperature, IP20‑IP53 protection), and standard programming interfaces such as RS‑232 and CAN bus.
| Input voltage range | 0 – 1500 VDC |
|---|---|
| Output voltage range | 0 – 1500 VDC |
| Output current (full range) | 0 – 50 A |
| Weight | ~21 kg |
| Front panel width | 483 mm |
| Operating temperature | 5 – 40 °C |
| Isolation line to output | 4000 V rms |
The unit accepts an input voltage from 0 to 1500 VDC.
The front panel is 483 mm wide, the unit is 132 mm high, and 515 mm deep.
