The TopCon Quadro Power Supply is a programmable high-power DC supply with constant voltage, constant current, and constant power operation modes. It features automatic and fast crossover and mode indication. The product line offers various output voltage and power options, with easy power increase through parallel, series, or multiload master-slave operation. It utilizes innovative IGBT and transformer technology for high efficiency and low cost. It comes with the user-friendly PC program TopControl for communication with the power supply. It is CE certified and manufactured in Switzerland.

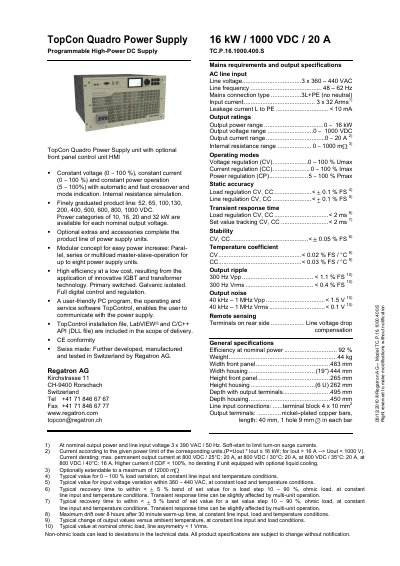

This document is a technical datasheet for the Regatron TC.P.16.1000.400.S, a programmable high-power DC supply unit from the TopCon Quadro series. The device supports constant voltage, constant current, and constant power operation with automatic crossover and internal resistance simulation. It is designed for industrial applications requiring precise power control up to 16 kW at 1000 VDC.
| Output power range | 0 – 16 kW |
|---|---|
| Output voltage range | 0 – 1000 VDC |
| Output current range | 0 – 20 A |
| Line voltage | 3 x 360 – 440 VAC |
| Line frequency | 48 – 62 Hz |
| Efficiency at nominal power | 92 % |
| Weight | 44 kg |
| Operating temperature | 5 – 40°C |
| Storage temperature | -25 – 70°C |
| Isolation Line to output | 4000 Vrms |
The unit supports constant voltage (CV), constant current (CC), and constant power (CP) operation.
Yes, it includes the TopControl operating and service software, as well as LabVIEW and C/C++ API.
The maximum permanent output current at 800 VDC is 20 A.
