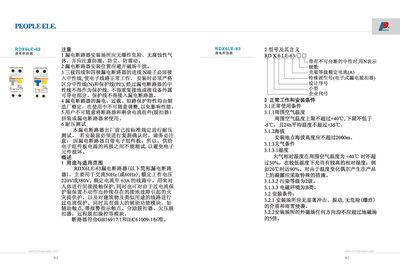

The RDX RDX6LE-63 leakage circuit breaker manual provides usage, installation, maintenance, technical specifications, and warranty information.
This manual describes the purpose, application range, and operating principles of the RDX6LE-63 leakage circuit breaker. It covers the rated voltage (220 V/380 V), rated current up to 63 A, and auxiliary functions such as alarm contacts, remote trip, and voltage monitoring. The device complies with GB16917.1 and IEC61009‑1 standards and is intended for indirect human contact protection, fire protection, and over‑current protection.
Installation guidelines include environmental limits (‑5 °C to +40 °C, altitude ≤2000 m, pollution level 2, electromagnetic class B), wiring requirements, and mounting instructions. The manual also details testing procedures, maintenance checks, warranty terms (18 months from production or 12 months from purchase), and ordering specifications. This manual is written in Chinese.
| Rated Voltage | 220 V/380 V |
|---|---|
| Rated Current | 63 A |
| Rated Residual Operating Current | 30 mA / 100 mA / 300 mA |
| Operating Temperature Range | -5 °C to +40 °C (24 h average ≤ +35 °C) |
| Maximum Installation Altitude | 2000 m |
| Pollution Degree | 2 |
| Electromagnetic Environment Class | B |
| Trip Time for Rated Residual Current | ≤0.1 s |
The rated voltage is 220 V for 1P+N and 2P configurations, and 380 V for 3P and higher configurations.
After installation and then roughly every month, press the test button while the breaker is closed; it should trip each time.
The ambient temperature must be between -5 °C and +40 °C, with a 24‑hour average not exceeding +35 °C.
