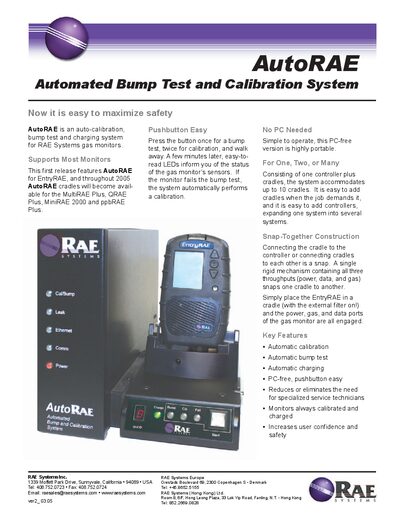

The AutoRAE system from RAE Systems provides PC‑free automatic calibration, bump testing and charging for EntryRAE and other gas monitors.
AutoRAE is a portable, PC‑free solution that automatically calibrates, performs bump tests and charges RAE Systems gas monitors. It supports up to ten cradles and can be expanded with additional controllers, offering push‑button operation and LED status indicators.
The kit includes a controller, an EntryRAE cradle, universal power supply, tubing, calibration gas cylinders and accessories. Key specifications include a controller size of 11.0" x 3.38" x 8.63", support for multiple monitor models, and a warranty of lifetime on non‑consuming components.
| Controller size | 11.0" x 3.38" x 8.63" |
|---|---|
| EntryRAE cradle size | 6.31" x 5.38" x 4.88" |
| Gas inlets | One fresh air, one isobutylene, one 4‑gas mix |
| Power supply | Universal Power Supply |
| Warranty | Lifetime on non‑consuming components; 1 year for pumps and solenoid valves |
No, AutoRAE is a PC‑free system that works with a single push‑button interface.
The system can accommodate up to ten cradles.
Press once for a bump test, twice for calibration; LEDs show the status.
It has a lifetime warranty on non‑consuming components and a one‑year warranty on pumps and solenoid valves.
