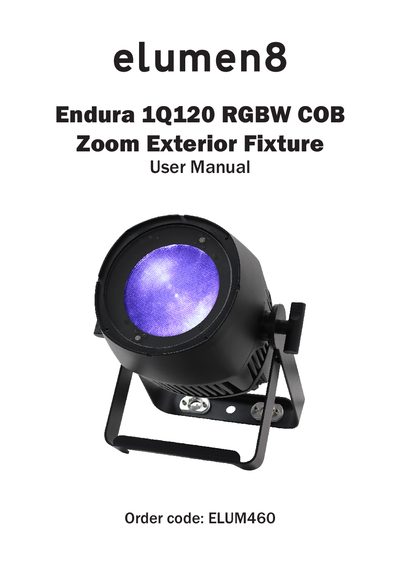

The Prolight Endura 1Q120 RGBW COB Zoom user manual provides safety guidelines, technical specifications, DMX setup, and operating instructions for the…
This manual begins with safety advice, warning users to inspect the fixture for transport damage, avoid modifying the unit, and follow proper wiring and power‑up procedures. It also outlines warranty information and the need for qualified technicians for service.
The document then details the fixture’s technical data, including a 120 W quad‑colour COB LED, adjustable beam angle (13‑38°), 3.6 kHz refresh rate, and selectable DMX channel modes (2, 5, 9 or 10). It explains DMX addressing, cable requirements, power‑linking capabilities, and disposal instructions, giving users the information needed to install and operate the Endura 1Q120 safely and effectively.
| Power consumption | 130W |
|---|---|
| Power supply voltage | 100~240V, 50/60Hz |
| Fuse type | T2A 250V |
| IP rating | IP65 |
| Dimensions | 310 x 280 x 245 mm |
| Weight | 5.7 kg |
| LED type | 120W quad‑colour COB LED (RGBW) |
| Adjustable beam angle | 13‑38° |
| Refresh rate | 3.6 kHz |
| DMX channels selectable | 2, 5, 9 or 10 |
| Lux at 2 m (13°) | 7,731 Lux |
| Lux at 2 m (38°) | 5,739 Lux |
| PowerCON TRUE1 connectors | Input and output |
| 5‑Pin XLR connectors | IP rated input and output |
| Cooling | Temperature‑controlled fan cooled |
| Included accessories | 50 mm snoot |
The DMX address is set on the back of the unit using the menu; the fixture can be assigned any start address from 1 to 512.
Inspect for transport damage, do not modify the unit, keep power cables away from other cables, use the correct fuse, and disconnect power when cleaning or not in use.
Up to eight fixtures can be linked at 240 V or four fixtures at 120 V, including the first fixture.
The fixture carries a two‑year warranty from the date of purchase.
