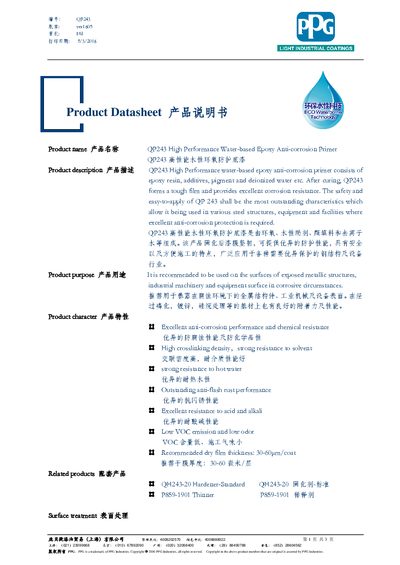

This document is a product datasheet for PPG QP24 3, a high-performance water-based epoxy anti-corrosion primer for steel structures.
The PPG QP24 3 High Performance Water-based Epoxy Anti-corrosion Primer is a coating designed for exposed metallic structures, industrial machinery, and equipment surfaces in corrosive circumstances. It consists of epoxy resin, additives, pigment, and deionized water, forming a tough film with excellent corrosion resistance and chemical resistance after curing. Key characteristics include high crosslinking density, strong solvent resistance, outstanding anti-flash rust performance, and low VOC emissions. This manual is written in Chinese.
| Recommended dry film thickness | 30 -60μm/coat |
|---|---|
| Volume Solid | 40%±3 |
| Thinning ratio | 10-15% |
| Spraying Viscosity | 30-50s |
| Spraying nozzle | 1.5~2.0 mm |
| Spraying pressure | 0.3~0.5 Mpa |
| Baking condition | 30 -60mins/(50~80 ℃) |
| Touch dry time | 30min |
| Through dry time | 24hours |
| Pot life | 2 hours |
The recommended dry film thickness is 30 -60μm per coat.
The pot life is 2 hours after mixing completely.
Environment temperature should be above 10 ℃, relative humidity lower than 70%, and substrate temperature 5℃ higher than dew point.
