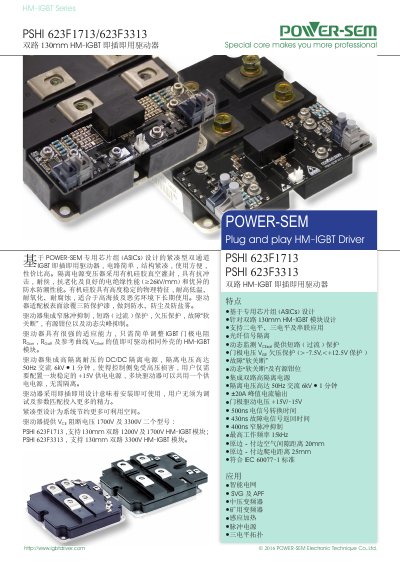

Technical datasheet for POWER-SEM PSHI 623F series dual-channel plug-and-play drivers supporting 1200V, 1700V, and 3300V HM-IGBT modules.
The document describes the POWER-SEM PSHI 623F1713/623F3313 series of compact dual-channel IGBT plug-and-play drivers. These devices are designed based on proprietary ASICs and feature an integrated isolated DC/DC power supply with a high isolation voltage rating of up to 6kV AC at 50Hz for one minute.
The datasheet details the electrical parameters, pin definitions, and application notes for driving dual-path 130mm HM-IGBT modules. It covers two specific models: PSHI 623F1713 for 1200V/1700V modules and PSHI 623F3313 for 3300V modules, highlighting features such as short-circuit protection, undervoltage monitoring, and soft turn-off capabilities. This manual is written in Chinese.
| Isolation Voltage (50Hz AC, 1 min) | 6kV for PSHI 623F1713; 6kV for PSHI 623F3313 |
|---|---|
| Peak Output Current per Channel | +/- 20A |
| Gate Drive Voltage | +15V/-15V |
| Maximum Switching Frequency | 15kHz |
| Operating Temperature Range | -40...+85℃ |
| Input Power Supply Voltage | +15V (Typical) |
It supports dual-path 130mm packaged 1200V and 1700V HM-IGBT modules.
It supports dual-path 130mm packaged 3300V HM-IGBT modules.
During normal operation, it returns a 'constant on' (high level) signal; during a fault, it returns an 'off' (low level) signal.
