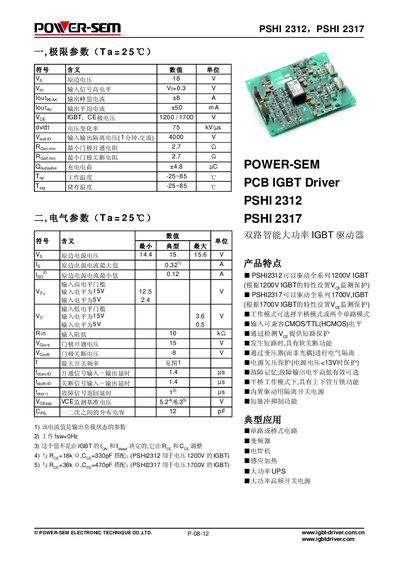

PSHI 2312 and PSHI 2317 are intelligent high power IGBT drivers produced by POWER-SEM. They can drive a full range of 1200V and 1700V IGBTs. They can choose half-bridge mode or two single-channel modes. The input can be compatible with CMOS/TTL(HCMOS) levels. Short circuit protection is provided by detecting VCE. In the event of a short circuit, there is a soft shutdown function. Electrical isolation is provided through a transformer (rather than a photocoupler). Undervoltage protection (when the power supply voltage is <13V). Fault memory; fault output level high and low effective optional. In the half-bridge working mode, there is an upper and lower tube interlocking function. A separate switching power supply for the driver is built in. Short pulse suppression function.
This document provides an overview of the POWER-SEM PSHI 2312 and PSHI 2317 IGBT drivers, including product features, electrical parameters, and typical applications such as inverters, UPS and induction heating. It explains the driver’s ability to handle 1200 V or 1700 V IGBTs, selectable half‑bridge or independent modes, and built‑in protection functions.
Detailed sections cover system architecture, input level selection, fault memory, VEE monitoring, soft‑shutdown, wiring guidelines, jumper settings, pin descriptions, and safety precautions. The manual also lists the electrical specifications and provides wiring diagrams for proper installation. This manual is written in Chinese.
| 原边电压 (Vs) | 18 V |
|---|---|
| 输入信号高电平 (Vn) | 0.3 V |
| 输出峰值电流 | 8 A |
| IGBT/CE 极电压 | 1200‑1700 V |
| dv/dt | 75 kV/µs |
| 隔离电压 (1 min, AC) | 4000 V |
| 最小门极开通电阻 (Ron) | 2.7 Ω |
| 最小门极关断电阻 (Roff) | 27 Ω |
| 充电电荷 (Q) | 4.8 µC |
| 工作温度范围 | -25 °C ~ 85 °C |
| 输入电压 (Vs) | 14.4‑15.6 V |
| 输入电流最大值 | 0.320 A |
| 输入电流最小值 | 0.12 A |
| 输入高电平门槛 (Vrr) | 12.5 V |
| 输入阻抗 (Rin) | 10 kΩ |
| 门极开通电压 (Van) | 15 V |
| 门极关断电压 (Van) | -8 V |
| 基准监测电压 (VcEstat) | 5.24 V / 6.39 V |
| 分布电容 (Cps) | 12 pF |
The driver provides 4 kV AC isolation for 1 minute between primary and secondary sides.
The driver operates from –25 °C to +85 °C.
