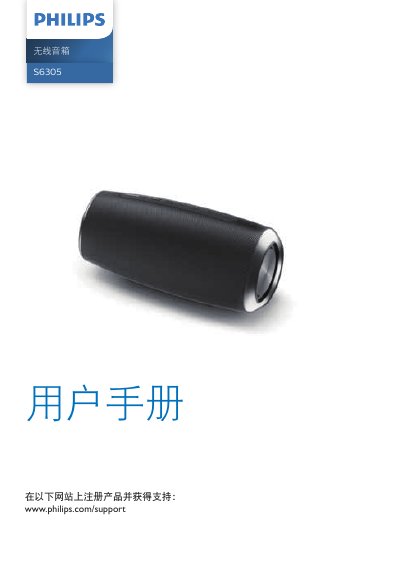

This manual provides instructions for operating the Philips S6305 wireless speaker, including charging, Bluetooth pairing, audio playback, and troubleshooting.
The Philips S6305 is a wireless speaker designed for listening to audio from Bluetooth devices or external audio sources via a 3.5mm auxiliary input. It features a built-in rechargeable battery, a USB port for charging external devices, and customizable multi-color LED lights that react to audio signals. The speaker supports stereo pairing with another identical unit for a wider soundstage. This manual is written in Chinese.
| Power Input | 5V 3A |
|---|---|
| Battery | 7.4V, 4400mAh |
| USB Output | 5V 2A |
| Dimensions | 230 x 100 x 100mm |
| Weight | 1 kg |
| Output Power | 10W x 2 |
| Frequency Response | 100Hz - 20kHz |
| Bluetooth Version | 5.0 |
| Bluetooth Range | 20m |
Press the power button to turn on the speaker; it will automatically enter Bluetooth pairing mode. Select 'Philips S6305' from your device's list and confirm the connection.
Press the button to turn the multi-color LED lights on or off.
Yes, two identical Philips S6305 speakers can be paired to play stereo sound. One acts as the master and the other as the slave.
The maximum distance between the speaker and the Bluetooth device is 20 meters (66 feet).
