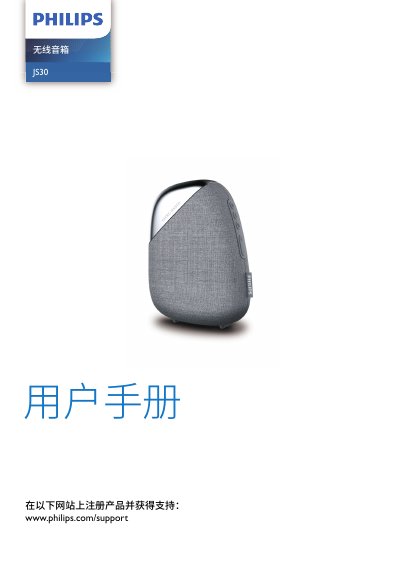

This manual provides operating instructions, safety information, and troubleshooting guides for the Philips JS30 wireless speaker.
The Philips JS30 is a portable wireless speaker powered by an internal rechargeable battery. It supports Bluetooth 5.0 connectivity with a range of approximately 20 meters (66 feet) and allows users to stream audio from compatible devices or make hands-free calls. The device features touch controls for power, volume adjustment, playback navigation, and call management. This manual is written in Chinese.
| Power Supply | 5 V 3 A |
|---|---|
| Battery Type | Built-in Li-ion battery |
| Battery Capacity | 2200 mAh |
| Dimensions (W x H x D) | 98 x 131 x 43 mm |
| Weight (Main Unit) | 0.275 kg |
| Output Power | 3 W |
| Frequency Response | 100 Hz - 20 kHz |
| Bluetooth Version | 5.0 |
| Maximum Range | 20 m (66 ft) |
The manual states that when charging, the LED indicator stays solid red, and turns blue when fully charged.
The maximum pairing distance between the speaker and a Bluetooth device is 20 meters (66 feet).
Press the power button on both units to pair them; the connected unit becomes the main speaker, and you can then press the button again to play music through both.
Check that the volume on the speaker and the connected device are adjusted, ensure they are within range, or restart the speaker.
