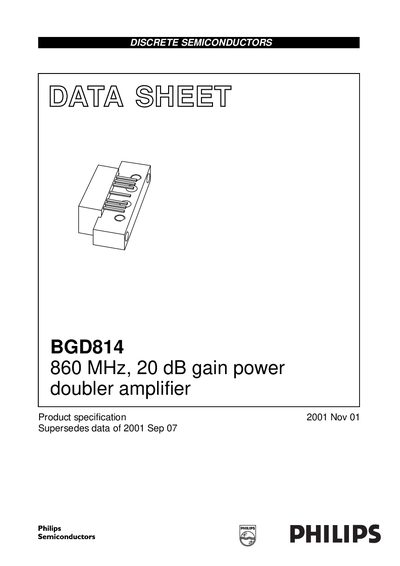

This datasheet provides technical specifications for the Philips BGD814, an 860 MHz, 20 dB gain power doubler amplifier for CATV systems.
The Philips BGD814 is a hybrid amplifier module designed for CATV systems operating in the 40 to 870 MHz frequency range. It features excellent linearity, extremely low noise, and excellent return loss properties. The module operates with a DC voltage supply of 24 V and is housed in a SOT115J package with gold metallization for reliability.
| Frequency Range | 40 to 870 MHz |
|---|---|
| Power Gain | 20 dB |
| Supply Voltage | 24 V DC |
| Package Type | SOT115J |
| Noise Figure | 5.5 dB |
| Operating Temperature | -20 to +100 °C |
The module operates in the 40 to 870 MHz frequency range.
The module operates with a DC voltage supply of 24 V.
The module can withstand supply transients up to 35 V.
