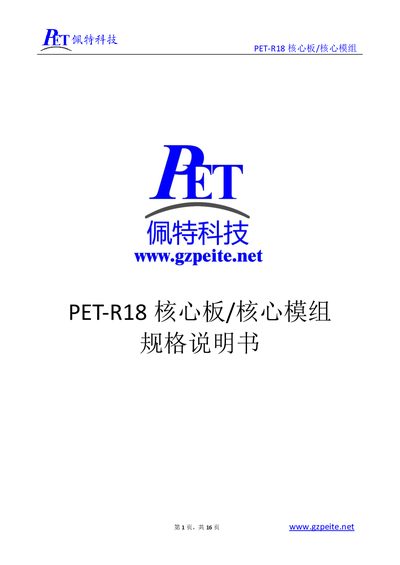

Specification sheet for the PET R18 core board/module detailing hardware, interfaces and performance.
The PET R18 core board/module is a compact, low‑power computing platform featuring a quad‑core Cortex‑A53 CPU, up to 2 GB DDR3 memory and configurable eMMC storage. It integrates Ethernet, USB‑Hub, multiple display interfaces and extensive I/O options, making it suitable for embedded Android or Linux applications.
The document provides detailed mechanical dimensions, electrical parameters, pin‑out tables and a full list of supported peripherals such as cameras, touch screens, GPS, Wi‑Fi, Bluetooth, 3G/4G modules and POE power. This manual is written in Chinese.
| CPU | Quad‑core Cortex‑A53 (R18) |
|---|---|
| GPU | ARM Mali‑400 MP2 |
| Memory | DDR3 1 GB / 2 GB |
| Storage | eMMC 8 GB / 16 GB / 32 GB |
| Operating Systems | Android 7.1.1 and Linux + Qt 5.9 |
| Power Consumption | < 5 W |
| Dimensions | 79 mm × 44.51 mm |
| Operating Temperature | -20 °C ~ 60 °C |
| Pin Count | 184 pins |
| UART Interfaces | 6 ports (shared) |
The PET R18 supports Android 7.1.1 and a Linux system with Qt 5.9.
Yes, the board includes POE power supply support.
The board provides six UART ports, some of which share functions with other interfaces.
