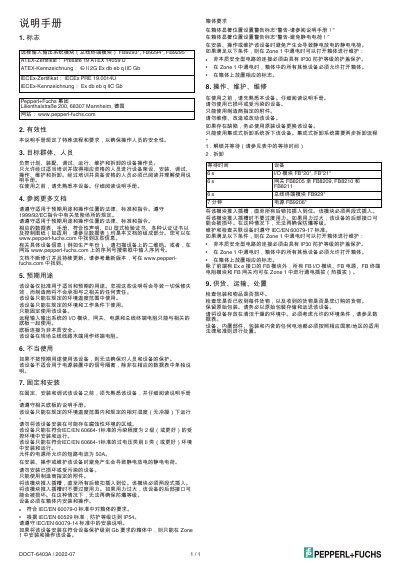

Pepperl+Fuchs Remote I/O System Module FB9293, FB9294, FB9295 Installation and Operation Manual

About this manual

This document serves as the instruction manual for the Pepperl+Fuchs Remote Input/Output System Modules, specifically models FB9293*, FB9294*, and FB9295*. It outlines special procedures and requirements to ensure operator safety during planning, assembly, commissioning, operation, maintenance, and dismantling. The text emphasizes that only personnel with appropriate training and qualifications should handle the equipment. This manual is written in German.

What's inside

• Signs
• Validity
• Target Group
• Intended Use
• Improper Use
• Mounting and Installation
• Operation, Maintenance, Repair

Frequently asked questions

How long must one wait after unlocking before removing the FB929* bus terminal module?

You must wait 7 minutes after unlocking before removing the FB929* bus terminal module.

What is the maximum short-circuit current allowed for the module's power supply?

The maximum short-circuit current allowed for the power supply is 50A.

What protection rating must the enclosure have to allow opening during operation in Zone 1?

The enclosure must have an IP30 protection rating for the cover protecting non-intrinsically safe connections.
