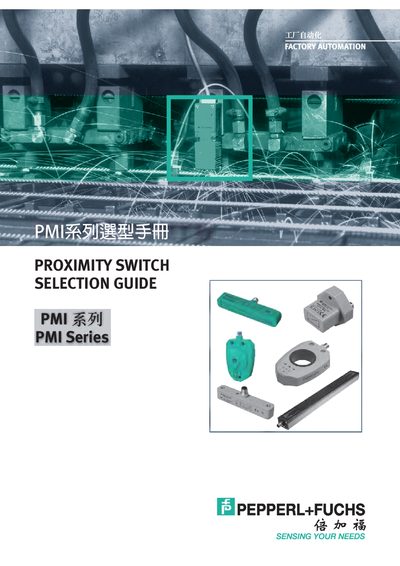

A selection guide for the PMI Series proximity switches, covering linear and rotary displacement sensors with technical specifications and application details.
This document serves as a selection guide for the PMI Series proximity switches manufactured by Pepperl+Fuchs. It details two main product families: linear displacement sensors (models F112, F90, F110) and rotary displacement sensors (model F130). The guide highlights the non-contact measurement capabilities of these sensors, which allow for high-precision measurement of various materials including ferrous and non-ferrous metals.
| Measurement Range | 14 mm |
|---|---|
| Measurement Accuracy | 0.05 mm |
| Operating Voltage | 18...30V |
| Protection Class | IP67 |
| Operating Temperature | -25...70°C |
| Output Type | Analog Output: 0...10V |
The PMI series supports both linear displacement measurement and rotary displacement measurement.
The measurement range extends from 4 mm to 810 mm or even more.
The sensors are non-contact, allowing for high-precision measurement without physical contact.
