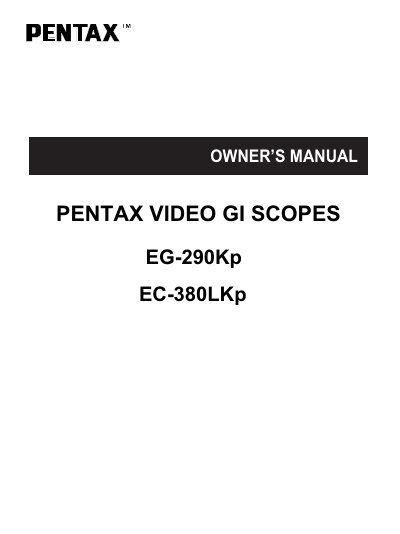

Owner's manual for Pentax EG-290Kp and EC-380LKp video GI endoscopes covering use, preparation, care and specifications.
This manual provides detailed instructions for the safe and effective use of Pentax EG-290Kp and EC-380LKp video gastrointestinal endoscopes. It includes intended use, preparation, inspection, operation, and post‑procedure reprocessing guidelines, as well as safety warnings and regulatory information.
The document also lists technical specifications such as field of view, tip deflection, channel dimensions, and environmental operating limits, and it specifies compatible Pentax video processors (EPK‑1000 and EPK‑i).
| Field of View (EG-290Kp) | 140° |
|---|---|
| Depth of Field (EG-290Kp) | 5 ~ 100 mm |
| Tip Deflection (EG-290Kp) | Up‑Down 210°, Right‑Left 120° |
| Rigid Distal Diameter | 9.8 mm (EG-290Kp), 13.4 mm (EC-380LKp) |
| Minimum Instrument Channel Width | 2.8 mm (EG-290Kp), 3.8 mm (EC-380LKp) |
| Total Length | 1,373 mm (EG-290Kp), 2,023 mm (EC-380LKp) |
| Operating Temperature | 10 ~ 40 °C |
| Lamp Life (EPK‑i processor) | 500 hours |
The lamp in the EPK‑i processor is rated for a maximum of 500 hours of use.
The EG-290Kp endoscope has a minimum instrument channel width of 2.8 mm.
Store at ambient temperature –20 ~ 60 °C and relative humidity 0 ~ 85 %.
