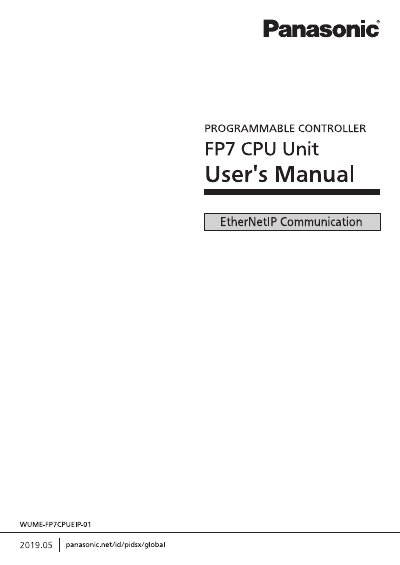

Panasonic FP7 EtherNet/IP Communication Function User Manual

This manual describes the EtherNet/IP communication function for the Panasonic FP7 CPU Unit, including configuration, settings, and specifications.

Brand: Panasonic
Category: Industrial Robot
Document type: User Manual
Language: English
Pages: 154
File format: PDF
File size: 2.6 MB
Published: 22 October, 2026
Updated: 22 October, 2026
Model: FP7
MD5 checksum: E848601F24747DCB022CD7006D9F4C15
PDF: Panasonic FP7 EtherNet/IP Communication Function User Manual PDF

About this manual

This manual provides instructions for the EtherNet/IP communication function of the FP7 series PLC CPU Unit. It covers safety precautions, an introduction to the function, and examples of network configurations using cyclic communication.

The document details the system configuration method, Ethernet and EtherNet/IP specifications, and the setting method using the EtherNet/IP Setting Tool. It also explains control data, high-level instructions, data refresh mechanisms, load factor calculations, and communication status monitoring.

What's inside

Introduction of EtherNet/IP Function
Description of EtherNet/IP Communication Function
Examples of Network Configuration
Overview of System Configuration Method
Ethernet and EtherNet/IP Specifications
EtherNet/IP Setting Method
EtherNet/IP Setting Tool
Control Data
High-level Instructions
Data Refresh of Cyclic Communication

Specifications

Maximum EtherNet/IP connections	256 connections (including I/O map connections)
Maximum Ethernet connections	216 connections
Total connection limit	272 connections

Frequently asked questions

What is the minimum CPU unit version required for the added EtherNet/IP setting items?

The FP7 CPU unit must be Ver.4.11 or later to use the added setting items.

What is the minimum version of the programming software required for the added functions?

FPWIN GR7 (S) Ver.2.10 or later is required to use the added functions.
