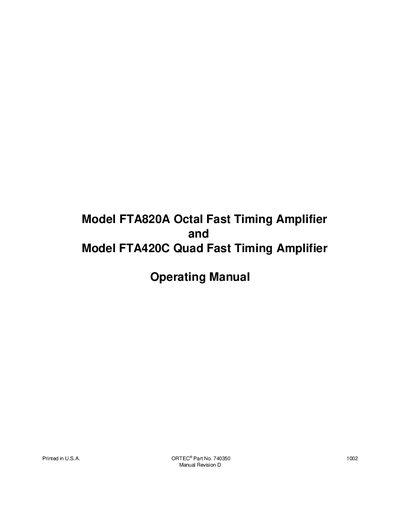

Operating manual for the ORTEC FTA820A Octal and FTA420C Quad Fast Timing Amplifiers, covering safety, specifications, installation, circuit description…
This manual provides operating instructions for the ORTEC Model FTA820A Octal and Model FTA420C Quad Fast Timing Amplifiers. These high-performance, wide-bandwidth amplifiers are designed to boost very fast linear signals from detectors used in fast timing applications, featuring a rise time of less than 1 ns.
| Gain (FTA820A) | 200, noninverting |
|---|---|
| Gain (FTA420C) | 20, noninverting |
| Number of Channels (FTA820A) | 8 |
| Number of Channels (FTA420C) | 4 |
| Rise Time | <1 ns |
| Bandwidth | 10 to 350 MHz |
| Power Required (FTA820A) | +12 V, 400 mA |
| Power Required (FTA420C) | +12 V, 200 mA |
LEMO type 00C50 connectors are used for all signal connections.
The FTA820A requires +12 V at 400 mA.
The FTA420C requires +12 V at 200 mA.
