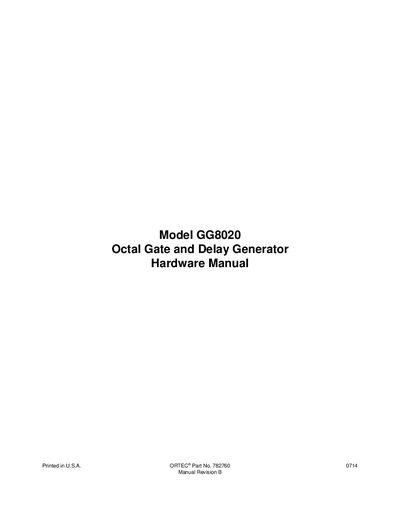

ORTEC GG8020 Octal Gate and Delay Generator Hardware Manual

The ORTEC GG8020 Octal Gate and Delay Generator is a NIM‑module that offers eight independent gate and delay channels for fast negative‑logic pulse applications. Each channel allows adjustable delay and pulse width, with both NIM and TTL outputs, making it suitable for gating ADCs, coincidence modules, and timing instruments.

This hardware manual covers safety instructions, warranty terms, detailed specifications, control settings, input and output connections, electrical and mechanical requirements, installation steps, and operating procedures. It also includes wiring diagrams, jumper settings, and adjustment instructions for fine‑tuning delay and width.

Covers: Warranty · Safety Instructions and Symbols · Safety Warnings and Cleaning Instructions · Description · Specifications · Performance
