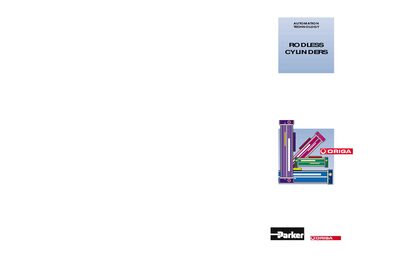

This Origa product leaflet provides technical data, options, ordering info, and assembly instructions for the Series 2000 and P120 rodless cylinders.
The Origa Series 2000 and P120 rodless cylinders are available in a range of bore sizes and piston configurations for linear motion applications. The catalog lists basic, joint‑clamp, NR50, Powerguide™ and P120 models with both single and double piston options.
Key features include an extruded anodized aluminum barrel with a full‑length slot, a hardened stainless‑steel inner sealing band for near‑zero leakage, oil‑free operation with permanent grease, and optional proximity sensors. Technical data, ordering procedures, spare parts, and assembly instructions are provided for easy integration into automation systems.
| Operating Pressure | Max. 120 PSI |
|---|---|
| Temperature Range | 15°F to +175°F |
| Bore Sizes | 10 mm, 16 mm, 25 mm, 32 mm, 40 mm, 50 mm |
| Maximum Stroke Length | up to 480 inches |
| Proximity Switch Contact Rating | 35 W |
| Proximity Switch Enclosure Class | IP65 (reed switch) / IP67 (Hall effect) |
The cylinders can operate up to a maximum pressure of 120 PSI.
Yes, the cylinders use a permanent lubricating grease that eliminates the need for regular oil‑mist lubrication.
