Featured Origa manuals

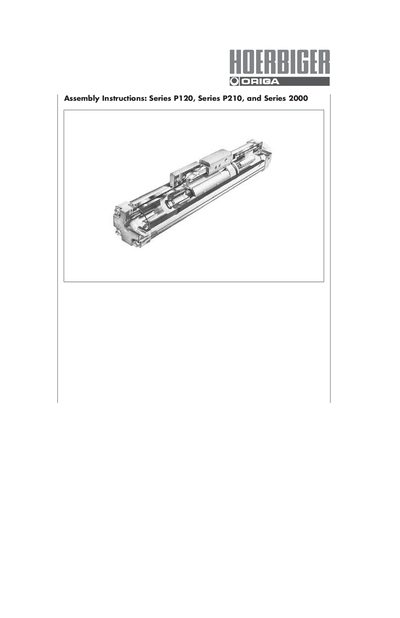

Origa Series P120, P210, 2000 Cylinder Assembly Instructions
This manual provides step‑by‑step assembly instructions for Origa pneumatic cylinders in the P120, P210 and 2000 series. It covers dismantling, inspection, pre‑assembly, final assembly, cleaning, and defect diagnosis.
Additional sections describe parts breakdowns, upgrade kits for the revised 2000 series, ordering information, and contact details for Hoerbiger‑Origa distributors worldwide.
Covers: Assembly Instructions · Dismantling · Inspection · Pre‑Assembly · Cleaning · Defect Diagnosis
Origa Series 2000 and P120 Rodless Cylinders Product Leaflet
The Origa Series 2000 and P120 rodless cylinders are available in a range of bore sizes and piston configurations for linear motion applications. The catalog lists basic, joint‑clamp, NR50, Powerguide™ and P120 models with both single and double piston options.
Key features include an extruded anodized aluminum barrel with a full‑length slot, a hardened stainless‑steel inner sealing band for near‑zero leakage, oil‑free operation with permanent grease, and optional proximity sensors. Technical data, ordering procedures, spare parts, and assembly instructions are provided for easy integration into automation systems.
Covers: General Information · Application Data · Technical Data · Proximity Sensors · Spare Parts · Assembly Instructions
Latest Origa manuals
Origa Series P120, P210, 2000 Cylinder Assembly Instructions
Service Manual 20 pages · 985 KB · ENAssembly, maintenance and troubleshooting guide for Origa Series P120, P210 and 2000 pneumatic cylinders.
Origa Series 2000 and P120 Rodless Cylinders Product Leaflet
Product Leaflet 78 pages · 2 MB · ENThis Origa product leaflet provides technical data, options, ordering info, and assembly instructions for the Series 2000 and P120 rodless cylinders.
Which document do I need?
Service Manual
Disassembly, diagnostics and part numbers, for repair.
Questions answered in Origa manuals
How can I tell if a 2000 series cylinder is the revised version?
The revised 2000 cylinder has a newly shaped outer band lock (item 25) fastened by a single flat‑head screw; older versions lack this feature.
From: Origa Series P120, P210, 2000 Cylinder Assembly Instructions
Did the maximum loads and moments change in the revised 2000 series?
No, the maximum loads and moments remain the same as in the original catalog.
From: Origa Series P120, P210, 2000 Cylinder Assembly Instructions
What is the maximum operating pressure for the cylinders?
The cylinders can operate up to a maximum pressure of 120 PSI.
From: Origa Series 2000 and P120 Rodless Cylinders Product Leaflet
Are the cylinders oil‑free?
Yes, the cylinders use a permanent lubricating grease that eliminates the need for regular oil‑mist lubrication.
From: Origa Series 2000 and P120 Rodless Cylinders Product Leaflet
