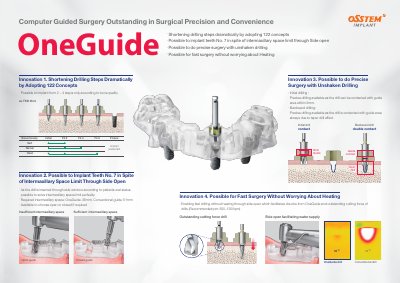

The OneGuide Computer Guided Surgery System shortens drilling steps, enables precise, fast, low‑heat dental implant surgery.
The OneGuide Computer Guided Surgery System is a dental implant guide that reduces drilling steps by using 122 concepts, allows implantation of teeth No. 7 despite limited intermaxillary space, and provides stable, unshaken drilling for precise surgery. Its side‑open design supplies water to keep drill temperatures low and supports fast drilling at 800–1200 rpm.
The system includes a kit of tools such as initial, flattening and backward drills, tissue punches, NoMount and fixture drivers, and a range of drill diameters (Ø3.5–5.0 mm, length 7–13 mm). A typical workflow involves CT and oral scans, planning, 3‑D printing of the OneGuide template, and delivery to the dental clinic.
| Recommended drilling speed | 800~1200 rpm |
|---|---|
| Conventional drill temperature | 73 °C |
| OneGuide drill temperature | 39 °C |
| Required intermaxillary space (OneGuide) | 36 mm |
| Required intermaxillary space (Conventional guide) | 51 mm |
| Drill diameter range | Ø3.5–5.0 mm |
| Drill length range | 7–13 mm |
The recommended drilling speed is 800 to 1200 rpm.
Its side‑open design supplies water, keeping the drill temperature around 39 °C versus 73 °C for conventional drills.
OneGuide requires 36 mm of intermaxillary space, while a conventional guide needs 51 mm.
