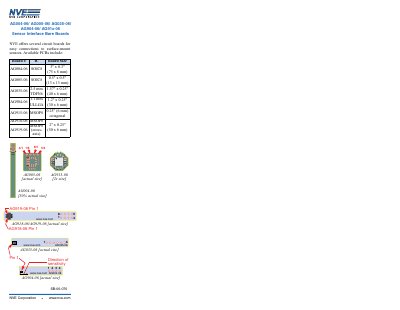

The NVE AG904-06 datasheet provides dimensions, pin configuration, and board options for the Sensor Interface Bare Board series.
NVE Corporation offers a family of sensor‑interface bare boards for easy connections to surface‑mount sensors. The series includes models AG004-06, AG005-06, AG035-06, AG904-06, AG91x-06 and others, each with a specific package type and size.
The datasheet lists the physical dimensions and pin‑1 orientation for each board. For example, the AG904-06 board uses a ULLGA package measuring 1.2" × 0.25" (30 × 6 mm), while other models such as AG004-06 and AG005-06 use SOIC packages of different footprints.
| AG004-06 size | SOIC8 3" x 0.3" (75 x 8 mm) |
|---|---|
| AG005-06 size | SOIC8 0.5" x 0.5" (13 x 13 mm) |
| AG035-06 size | TDFN6 2.5 mm |
| AG904-06 size | ULLGA 1.2" x 0.25" (30 x 6 mm) |
| AG915-06 size | MSOP8 0.25" (6 mm) |
Pin 1 on the AG918-06 board is indicated by the marking "Pin 1" in the documentation.
The AG904-06 board uses a ULLGA package.
