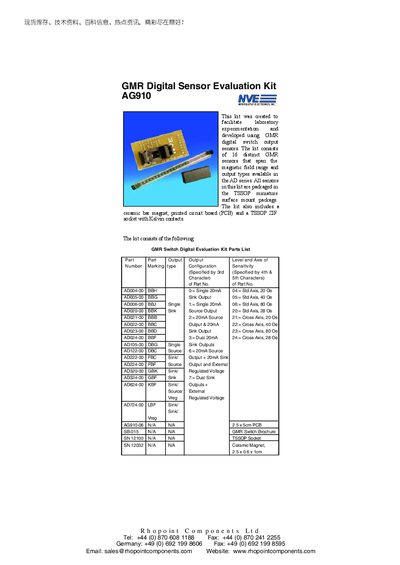

This document introduces the GMR digital switch output sensors and evaluation kit produced by Rhopoint Components Ltd. The kit includes 16 different GMR sensors that cover the magnetic field range and output types available in the AD series. All sensors are packaged in the TSSOP miniature surface mount package. The kit also includes a ceramic bar magnet, printed circuit board (PCB), and a TSSOP ZIF socket with Kelvin contacts.
The AG910 kit provides 16 distinct GMR digital sensors covering a range of magnetic field outputs. All sensors are supplied in a TSSOP miniature surface‑mount package and the kit includes a ceramic bar magnet, a printed circuit board (PCB) and a TSSOP ZIF socket with Kelvin contacts.
A detailed parts list is provided, showing each sensor part number, output type (single, sink, source, dual), current rating (typically 20 mA) and configuration details. The document also lists the magnet dimensions and contact information for the distributor Rhopoint Components Ltd.
| Number of sensors | 16 distinct GMR sensors |
|---|---|
| Sensor package | TSSOP miniature surface‑mount package |
| Maximum output current | 20 mA |
| Ceramic magnet size | 25 × 0.6 × 1 cm |
| Included accessories | ceramic bar magnet, PCB, TSSOP ZIF socket with Kelvin contacts |
The kit includes 16 distinct GMR digital sensors.
All sensors are packaged in a TSSOP miniature surface‑mount package.
The kit includes a ceramic bar magnet, a printed circuit board, and a TSSOP ZIF socket with Kelvin contacts.
