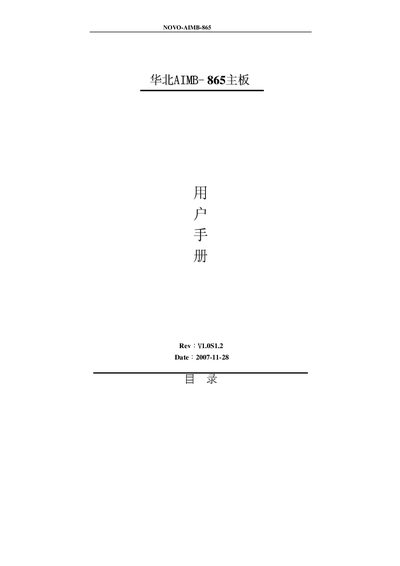

The NOVO AIMB-865 motherboard user manual provides safety guidelines, hardware specifications, installation steps, BIOS configuration, driver installation…
This manual covers the complete setup and operation of the NOVO AIMB-865 industrial motherboard. It begins with safety precautions, packaging contents, and a detailed description of the board, followed by diagrams of the I/O connectors and component layout.
Subsequent sections guide you through installing the CPU, memory, and expansion cards, configuring BIOS options, installing drivers, and configuring the built‑in watchdog timer. The document also lists all supported interfaces such as USB 2.0, SATA, IDE, LAN, and audio. This manual is written in Chinese.
| Memory slots | 4 × 184‑pin DDR slots (DDR333/400) |
|---|---|
| Maximum memory | 4 GB |
| IDE interfaces | 1 × 40‑pin IDE, 1 × 44‑pin Mini‑IDE |
| SATA ports | 2 × Serial ATA |
| USB 2.0 ports | 8 |
| Audio codec | Realtek 655 AC97 |
| LAN controller | Intel 82551ER 100M / 82540EM/82541EM 1000M |
The board includes eight USB 2.0 ports.
There are four 184‑pin DDR slots supporting up to 4 GB of DDR333/400 memory.
