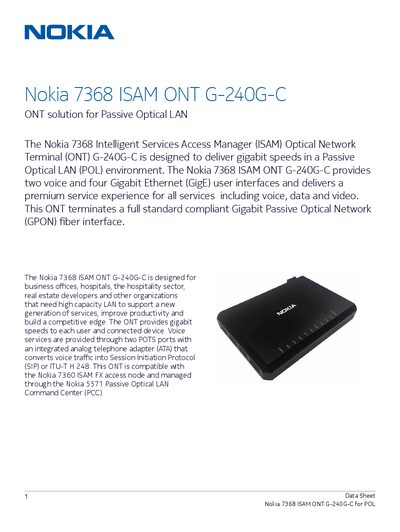

The Nokia 7368 ISAM ONT G-240G-C data sheet details its GPON features, ports, dimensions, power and management specifications.
The Nokia 7368 ISAM ONT G-240G-C is a Gigabit Passive Optical Network (GPON) terminal designed for business offices, hospitals, hotels and other high‑capacity LAN environments. It provides four Gigabit Ethernet ports, two POTS ports with analog‑to‑VoIP conversion, and supports bridge and routed modes with NAT, firewall, DMZ and DNS features.
Key specifications include a compact 33 mm height, 123 mm width, 180 mm depth, and a weight of 0.4 kg. It operates from –5 °C to 45 °C, consumes less than 7 W from a 12 V local power source, and offers GPON line rates of 2.488 Gb/s downstream and 1.244 Gb/s upstream. Management is handled via Nokia 5571 Passive Optical LAN Command Center or Nokia 5520 Access Management System.
| Height | 33 mm (1.3 in) |
|---|---|
| Width | 123 mm (4.8 in) |
| Depth | 180 mm (7 in) |
| Weight | 0.4 kg (0.88 lb) |
| Operating temperature | -5°C to 45°C (23°F to 113°F) |
| Power consumption | <7 W |
| Power input | 12 V (external AC/DC adapter) |
| GPON downstream wavelength | 1490 nm |
| GPON upstream wavelength | 1310 nm |
| Downstream line rate | 2.488 Gb/s |
| Upstream line rate | 1.244 Gb/s |
It has four RJ‑45 10/100/1000 Ethernet ports.
The ONT uses local powering with a 12 V input via an external AC/DC adapter and consumes less than 7 W.
It can be managed through the Nokia 5571 Passive Optical LAN Command Center (PCC) or the Nokia 5520 Access Management System (AMS).
The ONT supports SIP (RFC 3261) and codecs such as ITU‑T G.711 and ITU‑T G.729.
