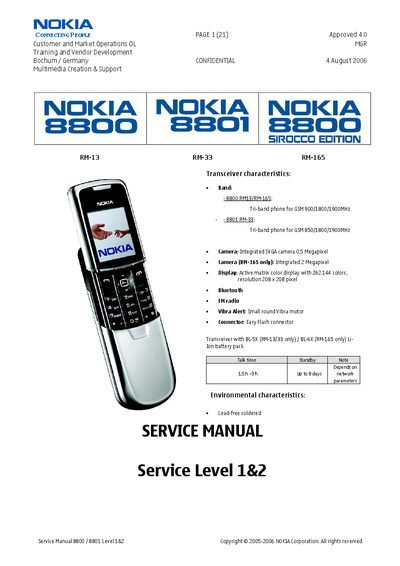

Service manual for Nokia 8800 and 8801 mobile phones covering repair procedures, parts lists, tools and testing.
This Service Manual provides Level 1 and Level 2 service information for the Nokia 8800 and 8801 mobile phones. It includes general repair guidelines, exploded views, spare‑parts overviews, service tools, software‑update instructions and detailed disassembly steps.
Technicians will also find quick‑trouble‑shooter sections, Go/No‑Go tests for camera and Bluetooth, and battery‑testing procedures. The document is intended for authorized Nokia service suppliers and contains safety warnings for use in sensitive environments.
| Supported GSM bands (8800) | GSM 900/1800/1900 MHz |
|---|---|
| Supported GSM bands (8801) | GSM 850/1800/1900 MHz |
| Camera (8800) | Integrated SVGA 0.5 Megapixel |
| Camera (8801) | Integrated 2 Megapixel |
| Display | Active matrix color, 262,144 colors, 208 × 208 px |
| Connectivity | Bluetooth, FM radio |
| Vibration motor | Small round Vibra motor |
| Connector | Easy Flash connector |
| Talk time (battery) | 1.5 h – 3 h |
The Nokia 8800 is a tri‑band phone that works on GSM 900, 1800 and 1900 MHz networks.
The Nokia 8801 includes an integrated 2 Megapixel camera.
Talk time ranges from about 1.5 hours up to 3 hours depending on usage.
Both models include Bluetooth and an FM radio.
