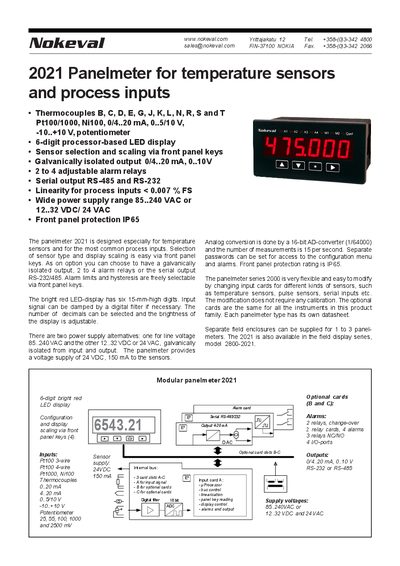

Product specification and user manual for the Nokeval 2021 Panelmeter, designed for temperature sensors and common process inputs.
The Nokeval 2021 Panelmeter is a modular instrument designed for temperature sensors and common process inputs. It features a 6-digit bright red LED display and allows for easy selection of sensor types and display scaling via front panel keys. The device supports various input types including Pt100, thermocouples, and current/voltage signals.
| Display | 6-digit bright red LED |
|---|---|
| Accuracy | 0.02% FS |
| Linearity | 0.007% FS |
| Power supply | 85..240VAC or 12..32 VDC and 24 VAC |
| Weight | 240 g |
| Panel cut-out | 43.5 (H) x 90.5 (W) mm |
It supports Pt100 3-wire, Pt100 4-wire, Pt1000, Ni100, Thermocouples, 0..20 mA, 4..20 mA, 0..5/10 V, -10..+10 V, and Potentiometer.
Yes, the panelmeter is also available with a green LED display by specifying 2021GR in the order code.
The measuring range for Pt100 sensors is -200..+700°C.
