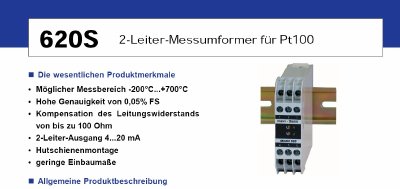

The Nokeval 620S is a compact, 2-wire temperature transmitter specifically designed for use with Pt100 sensors. It features extreme accuracy achieved through signal linearization with an error of only 0.05% of the span. The device allows one unit to replace several narrower range transmitters without reducing measurement precision.
| Sensor Type | Pt100 according to DIN 43760 |
|---|---|
| Accuracy | +0.05 % of span |
| Linearization Accuracy | 0.05 % of the temperature |
| Supply Voltage Range | 12..40 VDC |
| Output Current | 4.20 mA (Min 3.8 mA) |
| Operating Temperature | 0..55 °C |
| Storage Temperature | -10..+70 °C |
| Module Width | 22.5 mm |
| Housing Material | Polycarbonate, IP10 |
The transmitter is designed for Pt100 sensors according to DIN 43760.
It features automatic compensation for external leadwire resistance up to a maximum of 50 ohms per wire (or 100 ohms total).
The device is designed for mounting on a DIN-rail.
