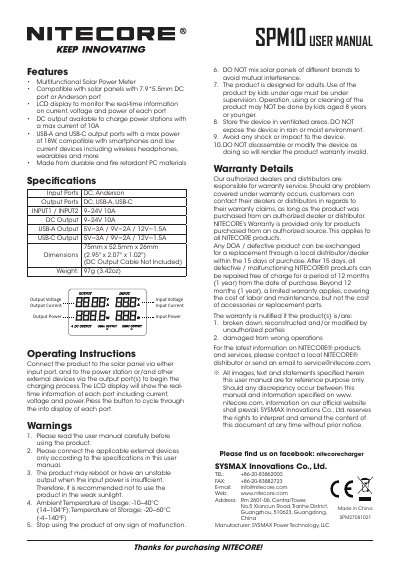

This manual covers the features, specifications, operating instructions, and warranty details for the NITECORE SPM10 Solar Power Meter.
The NITECORE SPM10 is a multifunctional solar power meter designed to monitor real-time current, voltage, and power for solar panels with 7.9*5.5mm DC or Anderson ports. It features an LCD display and provides DC output to charge power stations up to 10A, as well as USB-A and USB-C outputs with a maximum power of 18W for smartphones and other low-current devices.
| Input Ports | DC, Anderson |
|---|---|
| Input Voltage | 9~24V |
| Input Current | 10A |
| DC Output | 9~24V 10A |
| USB-A Output | 5V⎓3A / 9V⎓2A / 12V ⎓1.5A |
| USB-C Output | 5V⎓3A / 9V⎓2A / 12V ⎓1.5A |
| Dimensions | 75mm x 52.5mm x 26mm |
| Weight | 97g |
The device is compatible with solar panels featuring a 7.9*5.5mm DC port or an Anderson port.
The DC output can charge power stations with a maximum current of 10A.
The USB-A and USB-C output ports have a maximum power of 18W.
The ambient temperature of usage is -10 to 40°C (14 to 104°F).
