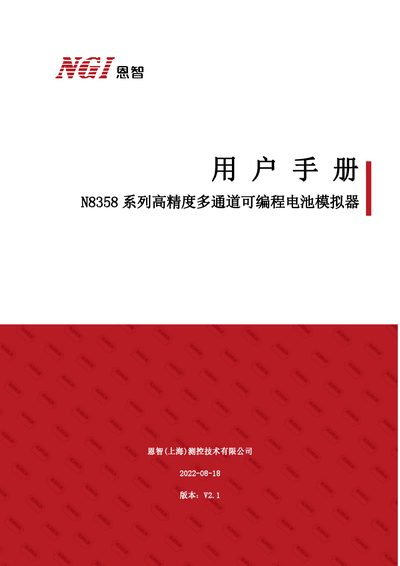

User manual for NGI N8358 series battery simulator covering installation, operation, specifications, maintenance and software use.
The NGI N8358 series is a high‑precision, multi‑channel programmable battery simulator designed for laboratory and test‑bench applications. This manual provides detailed instructions on safe installation, hardware setup, and configuration of up to eight independent channels.
It also describes the accompanying software, communication interfaces (LAN, RS‑232), and maintenance procedures, including calibration, fault troubleshooting, and warranty information. This manual is written in Chinese.
| Number of Channels | 8 CH |
|---|---|
| Input Voltage Range | 100 V–240 V AC, 47 Hz–63 Hz |
| Operating Temperature | 0 °C to 40 °C |
| Output Current Range (N8358‑05‑05) | ±5 A per channel |
| DC Voltage Measurement Accuracy | ±0.01 % of full scale |
The device operates between 0 °C and 40 °C.
The N8358 series provides eight independent channels.
It accepts an AC input voltage of 100 V to 240 V at 47 Hz to 63 Hz.
