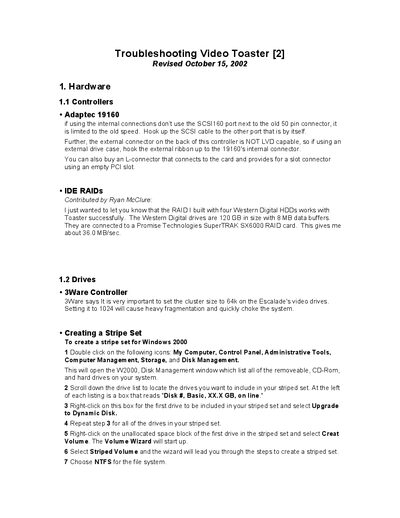

NewTek Video Toaster Troubleshooting Guide

A troubleshooting guide for the NewTek Video Toaster covering hardware, drives, audio, decks and common error solutions.

Brand: NewTek
Category: Other
Document type: User Manual
Language: English
Pages: 55
File format: PDF
File size: 482 KB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 1D883A80C0AEE8BFB4CF48E2AB8A6BC0
PDF: NewTek Video Toaster Troubleshooting Guide PDF

About this manual

This guide provides step‑by‑step troubleshooting for the Video Toaster system, including controller setup, RAID configuration, audio synchronization, deck control, and SX‑8 daughter‑card issues. It also offers practical tips for improving performance and avoiding common hardware failures.

The document includes detailed wiring diagrams, pin‑out tables, recommended graphics cards, and instructions for adjusting software parameters such as i2c delay and Windows service packs. It is intended for end‑users and system integrators who need to diagnose and resolve Video Toaster problems.

What's inside

Hardware Overview
Controllers and RAID
Audio and Deck Control
SX‑8 Daughter Card
Graphics Card Recommendations
Motherboard Compatibility
Pin‑out and Tally/GPI
Onboard RAM
WinRTME Performance Issues

Specifications

Onboard RAM	32 MB PC100 SIMM
BOB Power Input	9 V – 10 V
PCI Bus Bandwidth Used by WinRTME	22 – 66 MB/s

Frequently asked questions

Why does disktest.exe report slower performance when WinRTME is running?

WinRTME consumes a large portion of the PCI bus bandwidth (22‑66 MB/s), which reduces the throughput available for disk testing.

Download PDF (482 KB)
