NAVMAN VHF 7000/7100 Marine VHF Radio Operation Manual

The NAVMAN VHF 7000/7100 operation manual provides setup, key functions, DSC call procedures, and technical specifications for the marine VHF radio.

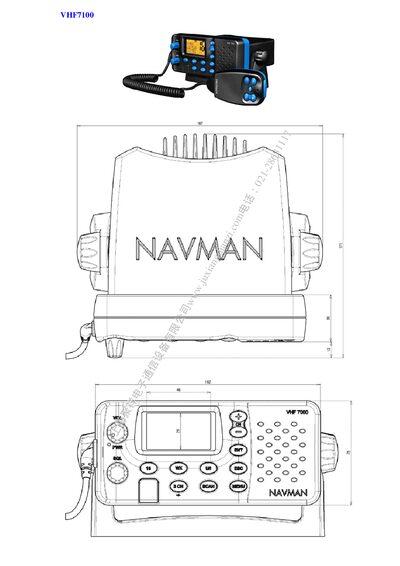

NAVMAN VHF 7000/7100 Marine VHF Radio Operation Manual - cover page
Brand
Navman
Category
Other
Document type
User Manual
Language
Chinese
Pages
7
File format
PDF
File size
915 KB
Published
29 October, 2011
Updated
28 September, 2026
MD5 checksum
1DD0B606C32018844F5E3739749D22F4
PDF
NAVMAN VHF 7000/7100 Marine VHF Radio Operation Manual PDF

About this manual

This manual explains how to operate the NAVMAN VHF 7000/7100 marine VHF radio, covering basic controls, power selection, channel scanning, and weather channel access. Detailed instructions are provided for each key, including volume, squelch, priority channel, and DSC call menus.

Technical data such as frequency ranges, output power options, antenna connector type, dimensions, and power consumption are listed, along with guidance on DSC (Digital Selective Calling) usage for distress and routine communications. This manual is written in Chinese.

What's inside

  • Basic Operation and Key Functions
  • Power Selection (High/Low)
  • Channel Scanning and Priority Channel
  • DSC Call Transmission and Reception
  • Technical Specifications
  • System Diagram
  • Antenna and Power Connections

Specifications

Operating voltage13.6 V DC
High‑power output25 W
Low‑power output1 W
Transmit frequency range156.025 – 157.425 MHz
Receive frequency range156.025 – 163.275 MHz
Antenna connectorSO‑239 (50 Ω)
Dimensions (W×H×D)161 mm × 75 mm × 147 mm
Weight1.29 kg

Frequently asked questions

What are the current draws for high‑ and low‑power transmission?

High‑power (25 W) transmission draws about 6 A, while low‑power (1 W) draws about 1.5 A.

Download PDF (915 KB)
