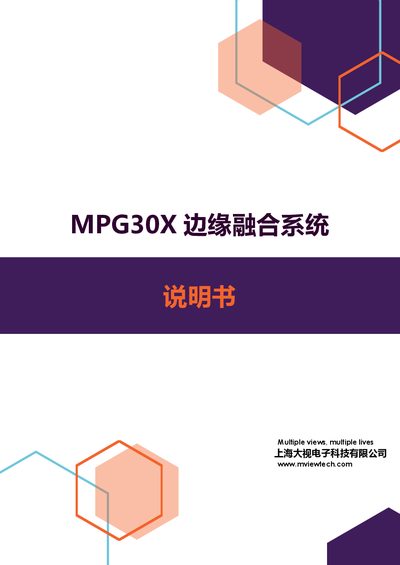

The MviewTech MPG30X Edge Fusion System manual provides product overview, advantages, specifications, and application scenarios.
The MPG30X is a third‑generation pure‑hardware edge‑fusion system from MviewTech. It features a fully FPGA‑based architecture without an embedded OS, modular plug‑in cards for input, output and control, and advanced geometric correction with a 17×17 grid.
The manual details the system's high‑resolution support (up to 16K×4K), dual‑link DVI/DisplayPort inputs, DVI‑I output, optional night‑scene mode, rotation and mask functions, and provides specifications, typical application examples, and contact information for support. This manual is written in Chinese.
| Supported input interfaces | Dual‑link DVI and DisplayPort |
|---|---|
| Output interface | DVI‑I (DVI and VGA simultaneous output) |
| Fusion bandwidth adjustability | 0‑2048 pixels (continuous) |
| Rotation capability | 0‑360° in 1° steps (optional) |
| Operating temperature range | 0‑50 °C |
| Power consumption per channel | 10 W |
Each channel consumes 10 W of power.
