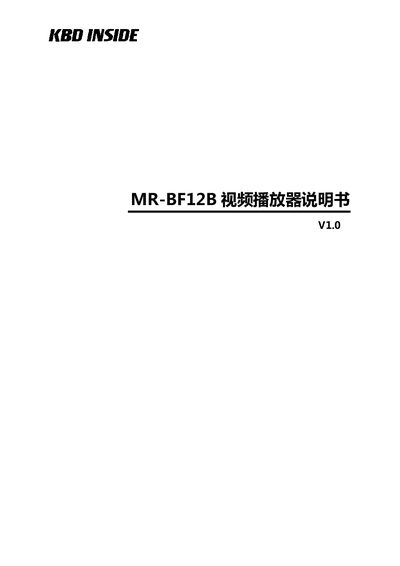

User manual for the MR MR-BF12B video player, covering system features, controller specifications, panel operation, settings, and installation applications.
This document is the user manual for the MR MR-BF12B video player. It details the system features, such as support for up to 150,000 pixels, automatic and timed playback, and dual-path backup capabilities. The manual also describes the controller's physical design, including its dimensions and interface ports. This manual is written in Chinese.
| Max Pixel Support | 150,000 pixels |
|---|---|
| SD Card Capacity | 32GB |
| Operating Voltage | AC 100V-240V |
| Power Consumption | 15W |
| Dimensions | 283mm x 134mm x 45mm |
| Network Distance | 100 meters |
In WAIT mode, the player does not play any segments upon power-on; playback is initiated only by selecting a segment via the remote control.
The controller supports DMX512AP, UCS512, and MR-DMX05 drive chip models.
The SD card must be formatted using the FAT32 file system before storing offline files.
