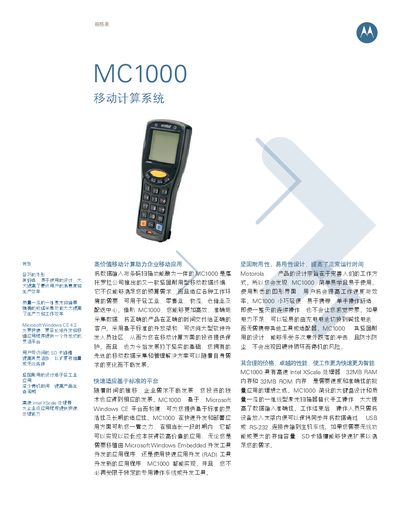

The Motorola MC1000 is a rugged mobile data terminal with an Intel XScale processor, 32 MB RAM/ROM, barcode scanner and flexible power options.
The MC1000 combines data entry and barcode scanning in a compact, durable handheld computer. It runs on Microsoft Windows CE 4.2 Core and offers an open architecture for rapid application development and deployment.
Designed for industrial environments, the device features a high‑resolution monochrome display, a one‑dimensional laser scanner, and flexible power choices (AAA or rechargeable lithium). It meets IP54 protection, can survive multiple 4‑ft drops, and includes RS‑232 and USB 1.1 interfaces for data transfer. This manual is written in Chinese.
| Processor | Intel XScale 312 MHz |
|---|---|
| Memory | 32 MB RAM / 32 MB ROM |
| Dimensions | 6.42 in H × 2.54 in W × 1.5 in D |
| Weight | 7.23 oz (205 g) with battery |
| Battery options | 3 × AAA batteries or 1 × rechargeable Li‑ion (3.7 V, 1800 mAh) |
| Drop resistance | 4 ft (1.2 m) onto concrete, 500 drops |
| Ingress protection | IP54 |
| Operating temperature | 14 °F to 122 °F (‑10 °C to 50 °C) |
| Scanner supported symbologies | ITF, RSS‑14, Codabar, MSI Plessey, IATA 2‑of‑5, Code 39, Code 93, Code 128, UPC‑A/E, EAN‑13/8, etc. |
It runs Microsoft Windows CE 4.2 Core.
The device can be powered by three AAA batteries or a rechargeable lithium‑ion battery.
It provides RS‑232 and USB 1.1 client ports for data exchange.
It can survive drops from 4 ft (1.2 m) onto concrete, tested up to 500 times.
