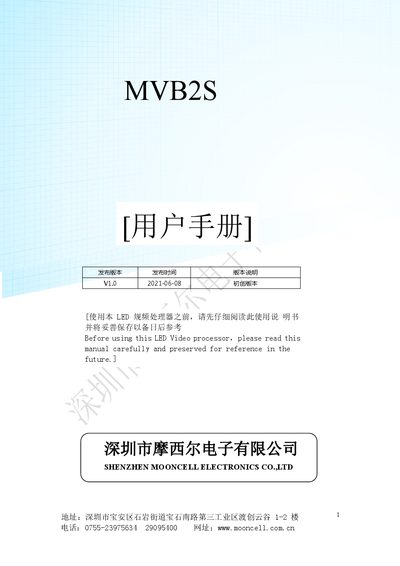

The Mooncell MVB2S video processor user manual provides safety instructions, hardware overview, features, specifications, and operation menus.
The MVB2S is a hardware‑based video processor designed for LED display systems. It supports multiple high‑definition inputs, offers image enhancement, noise reduction, and seamless channel switching, making it suitable for malls, hotels, exhibition halls and broadcast studios. The device includes two gigabit Ethernet ports, USB playback, and an intuitive LCD front panel.
The manual covers safety precautions, power requirements, hardware layout, and detailed operation menus. Users learn how to configure input sources, adjust image settings, manage USB media, lock front‑panel keys, and perform firmware upgrades. This manual is written in Chinese.
| Single network port load capacity | 650,000 pixels |
|---|---|
| Dual network ports load capacity | 1.3 million pixels |
| Maximum output resolution (width) | 3840 |
| Maximum output resolution (height) | 1920 |
| Maximum input resolution | 1920×1080 @ 60 Hz |
| Audio input | 3.5 mm jack |
Insert the USB drive into the processor’s USB port, then press the front‑panel “USB” signal switch key to enter USB mode before accessing the “U‑disk playback” menu.
Enter the “VGA Calibration” menu, select the “Manual” mode, and use the rotary knob to adjust horizontal start, vertical start, image width, and image height parameters until the display aligns correctly.
Select the “Key Lock” option in the menu and set it to “On”; this prevents accidental operation of the front‑panel keys.
Copy the V56 upgrade program to a USB drive, insert it into the USB port, select “Upgrade Processor” from the menu, and the device will reboot automatically after the upgrade.
