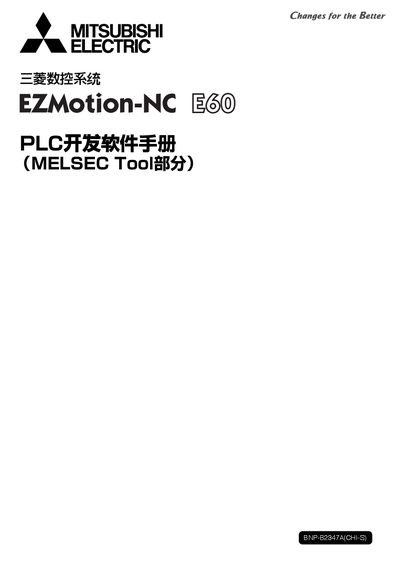

This document is a manual for BNP-B2347A(CHI-S) PLC, which covers the MELSEC Tool part. It includes information about safety precautions, preventive measures for startup and maintenance, and considerations related to program development.
This manual explains how to use Mitsubishi Electric's EZMotion‑NC E60 PLC development environment. It describes safety precautions, system composition, required PC hardware, software configuration, and step‑by‑step procedures for creating, converting, and loading PLC ladder programs with GX Developer and related tools.
The document also details the supported GX Developer functions, installation of serial cables, common issues, error handling, and the relationship between GX Developer and the PLC on‑line operation features. Appendices provide parameter tables, error codes, and additional reference material. This manual is written in Chinese.
| CPU | 133 MHz Pentium (or higher) |
|---|---|
| Memory | 32 MB (recommended) or more |
| Hard‑disk space | 150 MB for installation and operation |
| Display resolution | 800 × 600 pixels or higher |
| Communication interface | RS‑232C port |
Read the manufacturer's technical specifications, this manual and related documents, and follow the listed danger, warning and caution levels to avoid injury or equipment damage.
