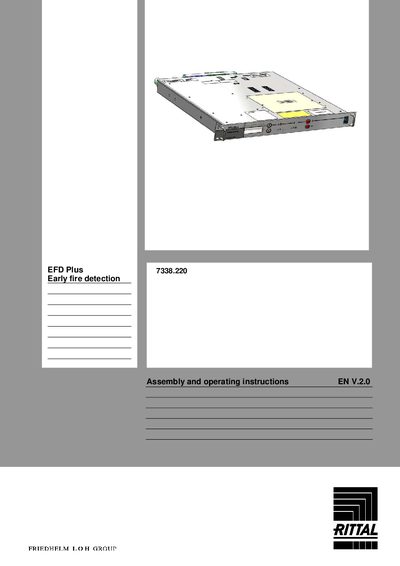

Minimax EFD Plus 7338.220 Smoke Aspirating System Operating Instructions

About this manual

The Minimax EFD Plus Smoke Aspirating System is a compact unit designed for installation in enclosed switch cabinets to detect fires in their early stages. It utilizes automatic fire detectors and can monitor up to five cabinets simultaneously. The system is intended for protecting high-quality technical installations such as IT, server, network, and telecommunications technology, as well as production controls and power supply systems. Alarms and faults can be transmitted via potential-free contacts or an optional CMC-TC with I/O unit to a superordinated monitoring or control device.

What's inside

• General
• Function and design
• Installation and commissioning
• Alarms and faults
• Display and control elements
• Behaviour during a fire
• Control, service, maintenance and repair
• Technical data
• Spare parts
• Declaration of Conformity

Specifications

Frequently asked questions

What is the intended use of the EFD Plus Smoke Aspirating System?

It is designed for installation in enclosed switch cabinets to detect a fire in its early stage.

Who is authorized to perform installation and maintenance?

Only individuals with adequate professional qualifications, such as competent individuals in matters relating to hazard detection systems or qualified electricians.
