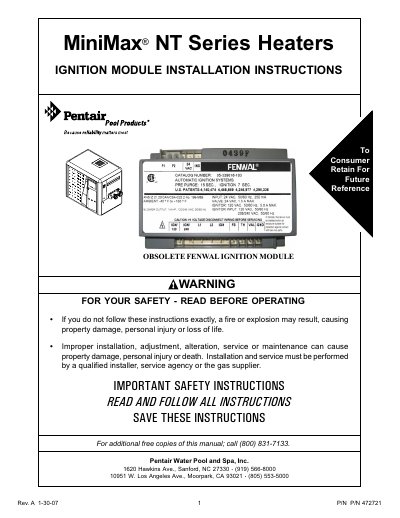

This manual provides instructions for installing the Pentair MiniMax NT series gas water heater ignition module.
This document provides installation instructions for upgrading the ignition module on Pentair MiniMax NT Series heaters. It addresses the replacement of an obsolete ignition module with a new one, requiring specific rewiring of the heater's harness. The guide includes safety warnings regarding high voltage and electrical grounding.
| Pre-purge time | 15 SEC. |
|---|---|
| Ignition time | 7 SEC. |
| Voltage | 208/240 VAC |
| Frequency | 50/60 Hz |
The required tools include a flat head screwdriver or nut driver, wire cutter, wire stripper, and a wire crimper for insulated terminals.
Yes, this kit is required to rewire the heater so it can use the new ignition module because the old one has been made obsolete.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
