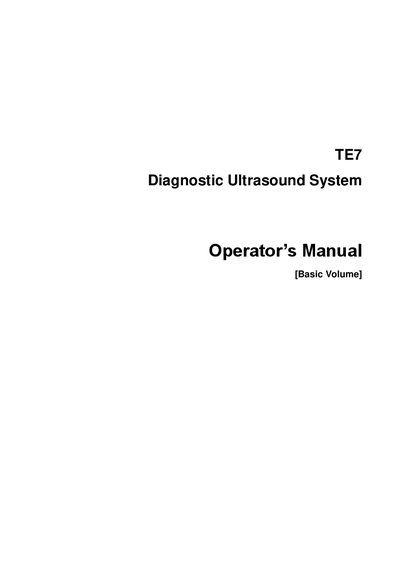

The Mindray TE7 Operator’s Manual provides safety guidelines, system setup, exam preparation, imaging optimization, and maintenance instructions for the…
This manual covers safety classifications, system overview, and preparation steps such as moving, powering on, and connecting probes, footswitches, and USB devices. Detailed instructions guide users through exam preparation, image optimization for B, M, Color, Power, and Doppler modes, as well as display, cine review, and measurement functions.
Additional sections describe physiological signal handling, patient data management, DICOM/HL7 integration, network and wireless LAN configuration, probe and biopsy accessories, acoustic output safety, and routine maintenance and troubleshooting procedures.
| Wireless LAN operating frequency | 2.412‑2.472 GHz, 2.484 GHz |
|---|---|
| Wireless LAN output power | ≤ 17 dBm |
| Wireless LAN data rate (802.11n) | up to 300 Mbps @ 2.4 GHz and 5 GHz |
| Patient leakage current limit (BF applied parts) | 100 µA in Normal Condition |
Use the procedure described in section 3.4 “Connecting a Probe”.
The manual lists safety classifications in section 1.1.
The system supports IEEE 802.11 b/g/n Wi‑Fi standards.
Daily maintenance tasks are outlined in section 16.1.
