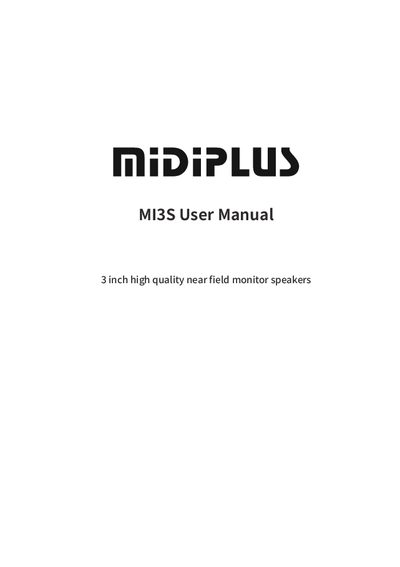

The MI3S near‑field monitor user manual explains setup, controls, safety notes and specifications for the 3‑inch active speaker.
This manual provides operating instructions for the MI3S 3‑inch near‑field monitor speakers, including volume control, high‑frequency adjustment, audio input selection and Bluetooth pairing. It also contains safety guidelines and power‑supply information.
Technical specifications such as driver sizes, frequency response, output power and dimensions are listed, helping users understand the performance capabilities of the monitor. This manual is written in Chinese.
| Maximum SPL @ 1 m | 98 dB |
|---|---|
| High‑frequency driver | 3/4" silk‑dome |
| Low‑frequency driver | 3" fiber‑glass woven cone |
| Crossover point | 2.0 kHz |
| Amplifier type | Class‑D |
| Number of amplifiers | 4 |
| Dimensions (mm) | 152 × 119 × 165 |
| Net weight | 3.1 kg |
| Bluetooth version | v4.0 (A2DP compatible) |
| Frequency response (‑3 dB) | 70 Hz – 25 kHz |
| High‑frequency output power | 10 W |
| High‑frequency adjustment range | -2 dB to +1 dB |
Turn the “VOLUME” knob on the rear panel; turning clockwise increases volume up to 0 dB, counter‑clockwise decreases it down to –30 dB. The factory default is –30 dB.
The default PIN for Bluetooth pairing is 0000.
The monitor accepts a power input of 100‑220 V, 50/60 Hz, with a maximum consumption of 60 W.
