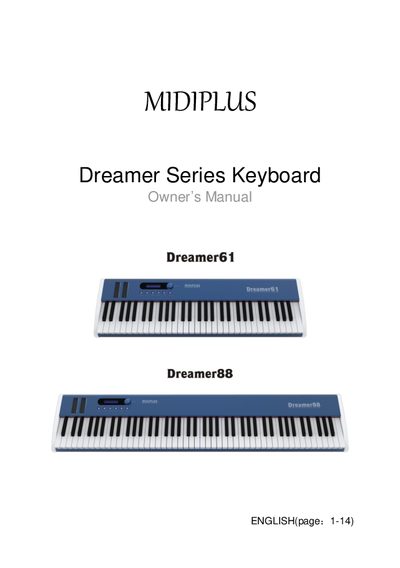

The MIDIPLUS Dreamer61/Dreamer88 keyboard manual explains setup, controls, and operation for the semi‑weighted, velocity‑sensitive MIDI keyboards.
This manual provides detailed instructions for the Dreamer series MIDI keyboards, covering both the 61‑key Dreamer61 and the 88‑key Dreamer88 models. It describes the hardware layout, front and rear panel connectors, touch‑sensitive bars, editable buttons, encoder functions, and power requirements.
The guide also explains how to use Normal and Edit modes for the touch buttons, perform a factory reset, and access the full list of MIDI controller functions. Technical specifications such as key count, polyphony, display type, and built‑in sound source are listed in the appendix.
| Key count | 61 or 88 keys |
|---|---|
| Key type | Semi‑weighted, velocity‑sensitive |
| Polyphony | 64 notes |
| Display | Custom LCD backlight (1602‑type module) |
| Touch buttons | 6 programmable touch buttons |
| Touch bars | PitchBend Touch Bar, Modulation Touch Bar |
| Encoder | 360‑degree adjustable encoder knob |
| Power adapter | DC 9 V / 1 A |
| Sound source | Integrated audio module |
The Dreamer series is offered in two models: Dreamer61 with 61 keys and Dreamer88 with 88 keys.
The keyboard supports up to 64 notes of polyphony.
It uses a DC 9 V, 1 A power adapter (2.00 mm core).
