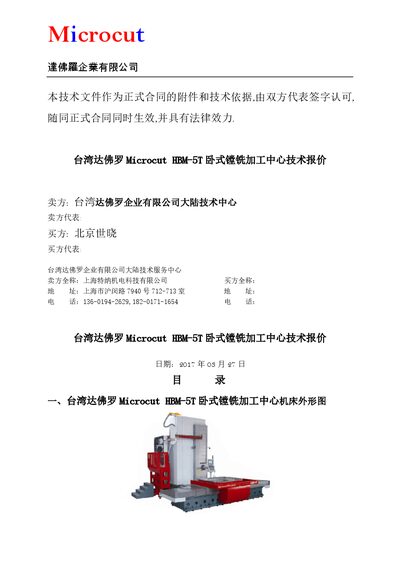

Technical quotation for the Microcut HBM-5T horizontal boring‑milling center, detailing specifications, configurations, pricing and support.
The document presents the Microcut HBM-5T horizontal boring‑milling center, describing its high‑rigidity structure, 5‑axis simultaneous motion, 15 t table load capacity, 3000 rpm spindle and other performance features. Detailed technical specifications, standard and optional equipment, and supplier information are listed.
It also covers delivery (135 days after contract), installation and acceptance procedures, training programs, after‑sales service, warranty terms and the quotation pricing for the complete machine and accessories. This manual is written in Chinese.
| Table load capacity | 15 000 kg |
|---|---|
| Spindle speed | 3000 rpm |
| Spindle power | 37/45 kW |
| Maximum torque | 2362 Nm |
| Machine weight | 48 000 kg |
| Positioning accuracy (X/Y/Z) | 0.015 mm |
| Repeatability (X/Y/Z) | 0.012 mm |
The machine will be shipped 135 days after the contract becomes effective.
The warranty lasts 15 months from the date of shipment or 12 months from acceptance, whichever occurs first.
The work table can support up to 15 000 kg.
The spindle can reach up to 3000 rpm and is powered by a 37 kW/45 kW motor.
