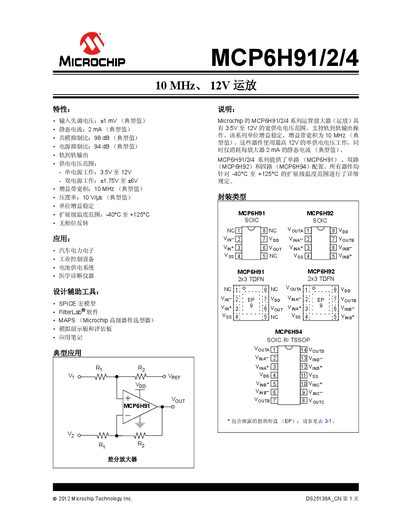

This datasheet details the electrical characteristics, test circuits, and typical performance curves for the Microchip MCP6H91/2/4 series operational…
The document provides a comprehensive overview of the MCP6H91/2/4 series operational amplifiers, highlighting key features such as a wide supply voltage range (3.5V to 12V single supply), rail-to-rail output operation, unity-gain stability, and low quiescent current. It specifies that the series includes single-channel (MCP6H91), dual-channel (MCP6H92), and quad-channel (MCP6H94) configurations designed for an extended industrial temperature range of -40°C to +125°C.
The datasheet includes detailed sections on absolute maximum ratings, DC and AC electrical specifications, and typical performance curves. It covers parameters like input offset voltage, power supply rejection ratio (PSRR), common-mode rejection ratio (CMRR), gain-bandwidth product, and slew rate. Additionally, it provides information on package thermal resistance and typical application circuits. This manual is written in Chinese.
| Supply Voltage Range (Single) | 3.5V to 12V |
|---|---|
| Supply Voltage Range (Dual) | ±1.75V to ±6V |
| Input Offset Voltage (Typical) | ±1 mV |
| Quiescent Current (Typical) | 2 mA |
| Common Mode Rejection Ratio | 98 dB |
| Power Supply Rejection Ratio | 94 dB |
| Gain Bandwidth Product | 10 MHz |
| Slew Rate | 10 V/µs |
| Operating Temperature Range | -40°C to +125°C |
The device supports a single supply range of 3.5V to 12V and a dual supply range of ±1.75V to ±6V.
The typical quiescent current is 2 mA per amplifier.
The devices are specified for an extended industrial temperature range of -40°C to +125°C.
Yes, the series is unity-gain stable.
