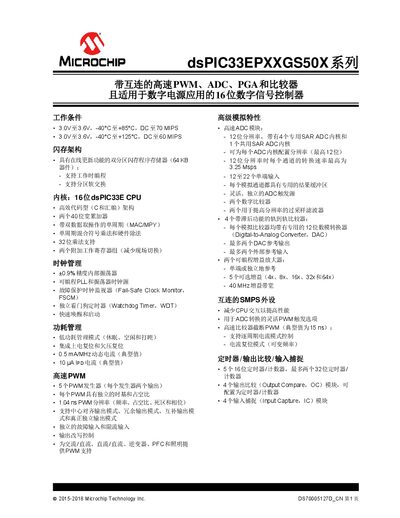

The Microchip dsPIC33EPXXGS50X Series datasheet provides specifications, pin configurations, and functional descriptions for the 16‑bit digital signal…
This datasheet describes the dsPIC33EPXXGS50X family of 16‑bit digital signal controllers, covering architecture, core features, memory organization, and power‑management options. It includes details on the CPU, flash and RAM sizes, high‑speed PWM, ADC, and peripheral modules such as UART, SPI, and I2C.
The document also provides extensive pin‑out tables, electrical characteristics, temperature ranges, package options, and ordering information. Appendices contain version history, reference tables, and contact details for technical support. This manual is written in Chinese.
| Operating voltage | 3.0 V to 3.6 V |
|---|---|
| Temperature range (industrial) | -40 °C to +85 °C |
| Maximum MIPS (DC) | 70 MIPS |
| Flash memory size | 64 KB |
| Number of PWM generators | 5 |
| PWM resolution | 1.04 ns |
| ADC maximum conversion rate | 3.25 Msps per channel |
The devices operate from 3.0 V to 3.6 V.
Each dsPIC33EPXXGS50X device includes five PWM generators.
