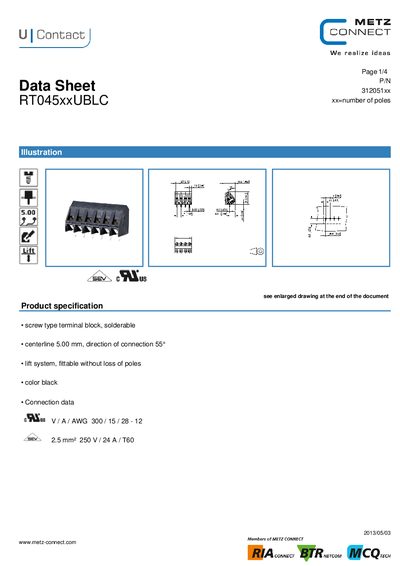

The Metz Connect RT045xxUBLC data sheet provides specifications, electrical ratings, dimensions and material details for the screw‑type terminal block.
The RT045xxUBLC is a screw‑type terminal block with a black PA66 insulating body and copper‑zinc terminals. It is designed for solderable connections and can be fitted without loss of poles.
Key specifications include a rated voltage of 250 V, rated current of 24 A, IP20 protection, operating temperature from –40 °C to 105 °C, and a tightening torque of 0.5 Nm (SEV). The block supports 2 to 24 poles and meets overvoltage category III requirements.
| Rated voltage | 250 V |
|---|---|
| Rated current | 24 A |
| Insulating material | PA66 |
| Flammability class | V0 |
| Temperature range | -40 °C to 105 °C |
| Tightening torque (SEV) | 0.5 Nm |
| Number of poles | 2‑24 |
| IP protection | IP20 |
| Overvoltage category | III |
| Clearance/creepage distance | 3.2 mm |
It is rated for 250 V and 24 A.
The block can operate from –40 °C up to 105 °C.
It supports a minimum of 2 poles and a maximum of 24 poles.
The recommended tightening torque is 0.5 Nm (SEV).
