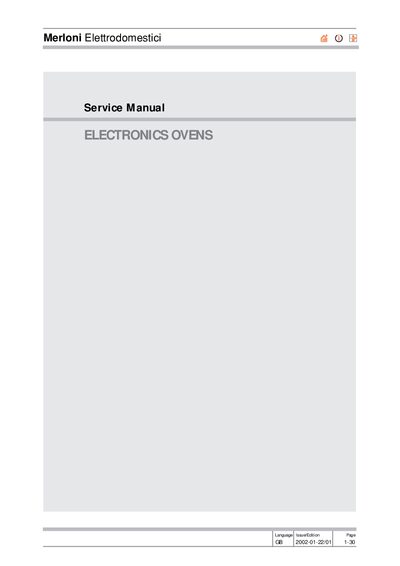

Service manual for Merloni electronics ovens, covering fault diagnosis, repair procedures, and electronic/mechanical schematics for various models.
This Service Manual provides detailed information for troubleshooting and repairing Merloni electronics ovens. It includes legends, product line definitions, mechanical and electronic oven descriptions, wiring diagrams, selector codes, self‑diagnosis features, and step‑by‑step repair instructions.
The manual is organized into sections such as the new range of Ariston ovens, electro‑mechanical ovens, electronic‑mechanical ovens, and electronic ovens. It also lists fault and warning codes with corresponding corrective actions, and provides a test procedure (Procedure A) to verify proper operation after repairs.
| Power rating | 1600 W |
|---|---|
| Operating voltage | 230 V |
| Temperature probe type | PT500 |
| Relay contact rating (motors) | 10 A / 250 V AC |
| Relay contact rating (thermostatic) | 16 A / 250 V AC |
