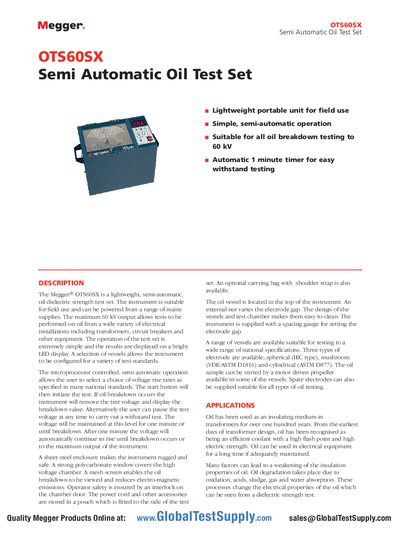

The Megger OTS60SX is a lightweight, semi‑automatic oil dielectric strength test set delivering up to 60 kV for field testing of transformer and…
The OTS60SX is a semi‑automatic oil dielectric strength test set designed for field use. It provides a maximum output of 60 kV and displays results on a bright LED screen. The instrument is microprocessor‑controlled, allowing selection of voltage rise rates to match various national standards, and includes an automatic 1‑minute timer for withstand testing.
Optional vessels with spherical, mushroom or cylindrical electrodes (some with stirrers) enable testing to a wide range of specifications. Safety features include a strong polycarbonate window, a mesh screen, and an interlock on the chamber door. The unit is powered from selectable mains supplies and is housed in a rugged steel enclosure.
| High Voltage Output | 0‑60 kV |
|---|---|
| Test Frequency | 61.8 Hz |
| Transformer Rating | 500 VA |
| Output Disconnection Time | Within 1 ms of breakdown detection |
| Input Power Supply | 115/230 V, switch selectable (99‑132 V, 198‑264 V), 50/60 Hz, max 80 VA |
| Measurement Accuracy | ±2 % ±3 digits |
| Operating Temperature Range | 0 °C to 40 °C |
| Physical Dimensions | 336 mm × 400 mm × 235 mm |
| Weight | 17.5 kg (38.5 lb) |
The instrument can output up to 60 kV.
It maintains the voltage for one minute before continuing to rise.
An interlock on the chamber door ensures operator safety.
Spherical (IEC), mushroom (VDE/ASTM D1816) and cylindrical (ASTM D877) electrodes are offered, with optional stirrers.
