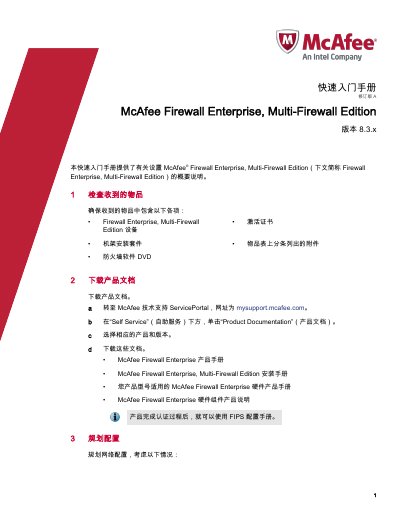

This quick start manual provides an overview for setting up McAfee Firewall Enterprise, Multi-Firewall Edition version 8.3.x.
This document serves as a quick start guide for the McAfee Firewall Enterprise, Multi-Firewall Edition (version 8.3.x). It outlines the initial steps required to set up the device, including checking received items, downloading documentation, and planning the network configuration.
The manual details the installation process for both physical hardware models (specifically mentioning S7032) and virtual appliances within a VMware vSphere environment. Key procedures include configuring management networks on ESXi, installing the VMware vSphere Client, setting up virtual networking, and performing initial configurations using either the Quick Start Program or the Admin Console. This manual is written in Chinese.
| Management Computer OS (Admin Console) | Windows Server 2008, Windows 7, Windows Vista, Windows XP Professional |
|---|---|
| Management Computer Processor (Admin Console) | 2 GHz x86 compatible processor |
| Control Center Client OS | Windows Server 2008, Windows Vista, Windows Server 2003, Windows 7, Windows XP Professional SP2 or higher |
| Control Center Client Processor | 3 GHz Intel Pentium 4 processor or faster |
The password length must be at least 8 characters.
Connect the management network to the Ethernet port labeled mgr1, without connecting any other ports.
The default internal IP is 192.168.1.250, and the default external IP is 192.168.2.250.
